For High Precision Positioning – Pin Shift Cylinder CKQG-X2370/CKQP-X2371
・High Precision: Rod end deflection of ±0.1 mm or less
・Pins for positioning the workpiece provided by the customer
can be directly mounted.
・Built-in coil scraper
・Reduces labor time by integrating the cylinder and guide

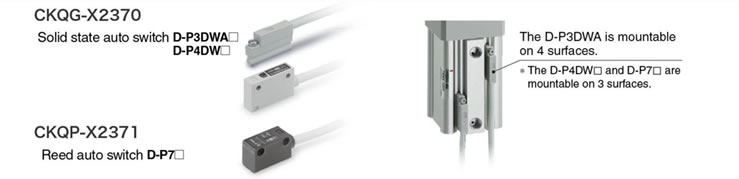

・Magnetic field resistant auto switches are mountable.
Other Data :
> Safety Instructions
> Auto Switches/Precautions
> Green Procurement (RoHS)
Rod end deflection of ±0.1 mm or less is achieved when a load is applied to the rod at its extension end.
Mounting surface ⇔ Rod center Distance accuracy ±0.1 mm
Cylinder mounting surface knock pin hole ⇔ Rod end Distance accuracy ±0.1 mm
■Built-in coil scraper
Removes welding spatters, foreign matter, cutting chips, etc. sticking to the piston rod.
