Heavy Duty Stopper Cylinder RS2H
・Weight: Reduced by up to 22% (Compared with the previous
・Cylinder tube: Shortened by up to 9 mm (RS2H63-30 stroke)
・Capable of stopping pallets softly
・Stopper cylinder with shock absorber
・Lock Release specification (-XC102)
Other Data :
> Safety Instructions
> Auto Switches/Precautions
> Model Selection/Technical Data
> Made to Order Common Specifications
> Green Procurement (RoHS)
■Better handling and visibility of the lock mechanism (Option)
The shape of the lock is changed. Easy to unlock manually,
and instantly see whether it is locked.

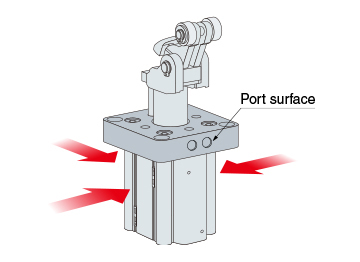

■Compact auto switch (D-M9□) and magnetic
field resistant auto switch (D-P3DW) can be
mounted to three sides.
Compact auto switch can be directly mounted to round switch mounting groove.
■The roller lever direction can be changed in 90° steps.
To adapt the roller lever of the stopper to the work piece direction,
the roller lever can be positioned in 4 different directions in 90° steps around the piston rod.
